with hot-press sintered beads with vacuum brazed beads with electroplated beads

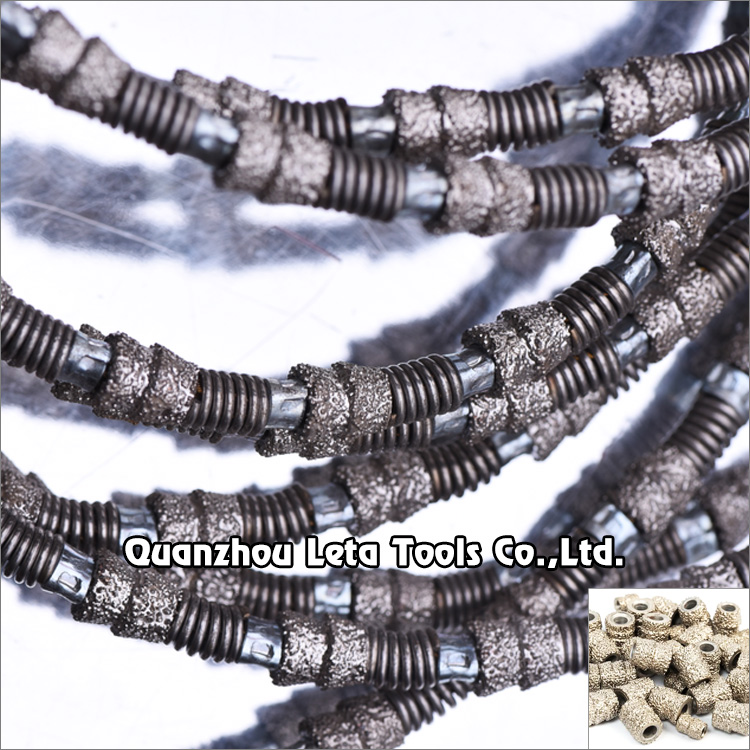

Diamond wire saw with vacuum brazed diamond beads for marble quarry cutting





Diamond wire saw with vacuum brazed diamond beads for marble quarry cutting

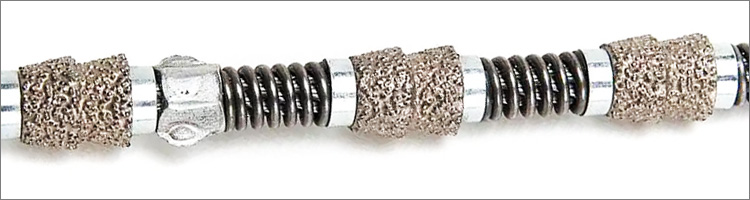

This spring fixing type diamond wire saw with vacuum brazed diamond beads is used for quarry cutting of marble travertine or soft stone without water(or less water), which can vastly improve the exploiting efficiency and reduce the waste of quarry resource.



It is safety when operation & benefit in environmental protection.



Compared to  the wire with hot-press sintered diamond beads, the cutting speed of this type diamond wire is much faster, and compared to electroplated diamond beads, the cutting life is much longer.



This type diamond wire is with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repair, low cost, which can be considered the most simple and versatile of instruments for marble quarry cutting.











Code No.
Diameter
Fixing Type
Beads No.
pcs/M
DWSMQ-VB-11
Ф11.5mm
Spring
28-32
DWSMQ-VB-10 Ф11.0mm
Spring
28-32
DWSMQ-VB-8.8 Ф8.8mm
Spring
28-32
DWSMQ-VB-7.2 Ф7.2mm
Spring
28-32





The about specifications & photos is for reference, other specification may be available as per customer's demand.





Please inform the following if you would like to place order:



  Code No. of Diamond Wire

  Diameter of the Wire (11.5mm or 11mm)

  Wire Type (Spring)

  Marble Type (Hard, Medium, Soft, or Abrasive)

  Order Quantity (How many Meters)

  Wire Saw Machine Power (How many KW or HP of the motor)
