with hot-press sintered beads with vacuum brazed beads with electroplated beads

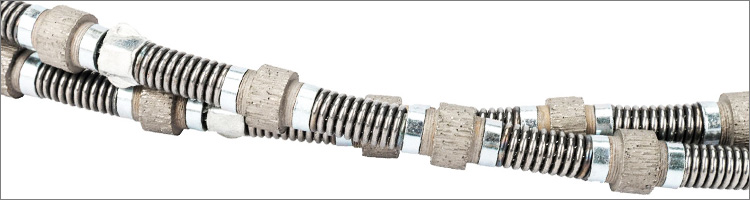

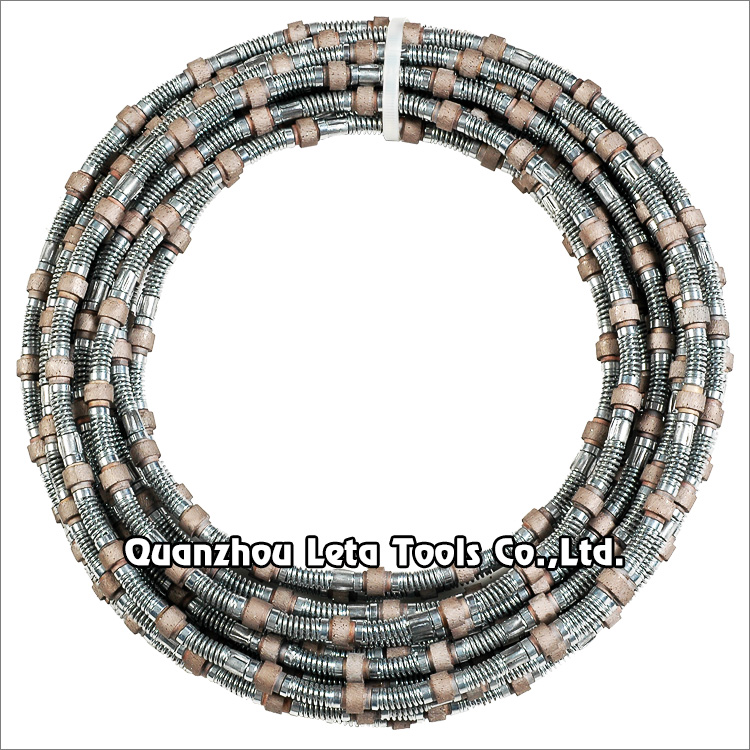

Diamond wire saw with sintered diamond beads for marble quarry cutting





Diamond wire saw with sintered diamond beads for marble quarry cutting





This spring fixing type diamond wire saw with hot-press sintered diamond beads is used for quarry cutting of marble travertine or soft stone without water(or less water), which can vastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.



The main specialties of this diamond wire are :


  · To be able to used for great area marble quarries cutting;
  · To get high percentage of forming dimension stone;
  · High manufacture efficiency;

  · Very less breakage ratio when using therefore increase the working lifetime.
  · Safety, low-noise, no-dust and friendly surroundings;
  · Low cutting cost.



This type diamond wire is with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repair, low cost, which can be considered the most simple and versatile of instruments for marble quarry cutting.











Code No.
Diameter
Fixing Type
Beads No.
pcs/M
DWSMQ-S-11.5
Ф11.5mm
Spring
28-32
DWSMQ-S-11.0 Ф11.0mm
Spring
28-32





The about specifications & photos is for reference, other specification may be available as per customer's demand.





We also can:



  · Change the diameter according to customer's request.
  · Offer diamond beads with different hardness (HRB95-105).
  · Offer diamond beads with different length.





Please inform the following if you would like to place order:



  Code No. of Diamond Wire

  Diameter of the Wire (11.5mm or 11mm)

  Wire Type (Spring)

  Marble Type (Hard, Medium, Soft, or Abrasive)

  Order Quantity (How many Meters)

  Wire Saw Machine Power (How many KW or HP of the motor)
