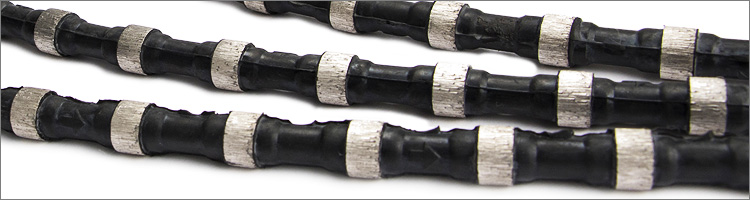

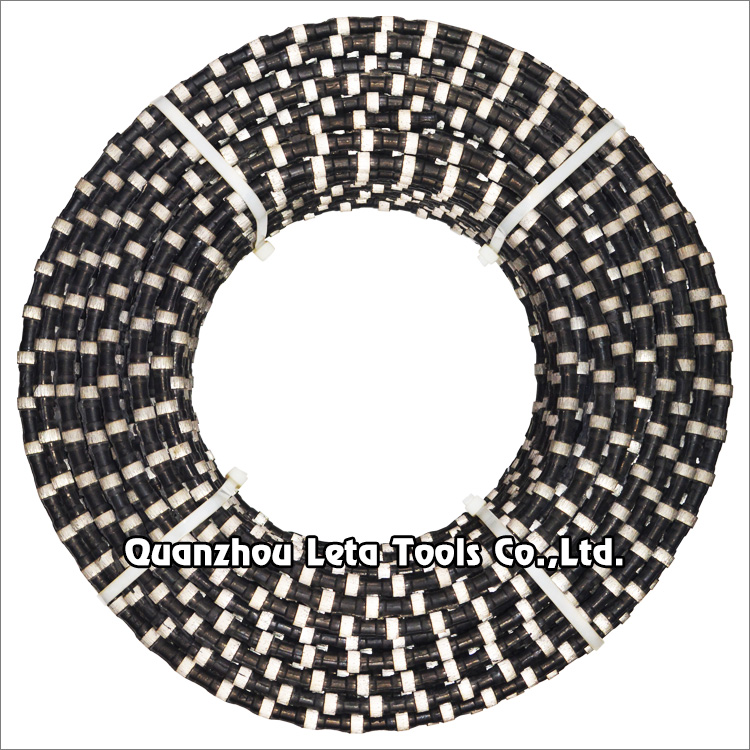

Diamond wire saw for granite hard stone quarry cutting

Diamond wire saw for granite hard stone quarry cutting

This technology is a revolution for stone granite quarry, which is highly efficiency in exploitation, safety and environmental friendly when operation. With this technology, the quarry will have a high yield of good block and the size of block will be large. With the promotion of this technology, the situation of high consumption of resource, low output, small size of block, danger, pollution can be hugely improved.

This rubber coating diamond wire saws are widely used for granite quarries. The main specialties of diamond wire saws are :

To be able to used for great area granite quarries cutting;
To get high percentage of forming dimension stone;
High manufacture efficiency;
Safety, low-noise, no-dust and friendly surroundings;
Low cutting cost.

Code No.	Diameter	Fixing Type	Beads No. pcs/M
DWSGQ11.5-01	Ф11.5mm	Rubber	40pcs
DWSGQ11.5-02	Ф11.5mm	Rubber+Spring	40pcs
DWSGQ11.0-03	Ф11.0mm	Rubber	40pcs
DWSGQ11.0-04	Ф11.0mm	Rubber+Spring	40pcs

The about specifications & photos is for reference, other specification may be available as per demand.

We also can:

Change the diameter according to customer's request.
Offer diamond beads with different hardness (HRB95-105).
Offer diamond beads with different length.
We develop special rubber and the technology of vulcanization, make sure the diamond wire can work in most hard-working conditions.

Recommendations:

For granite quarry, the cables are in general fitting by injection of vulcanized rubber, the advantage is better adheres to the beads and support cable, which protect it better from the action of abrasive pastes. The rubber wire easily withstands increases in temperature caused by badly controlled water spraying is power 11-75KW. The water spraying between 25-50 L/min according to the cut dimension.

This rubber coating diamond wire for marble quarry cutting is available with special bond diamond beads & more flexible rubber.

Please inform the following if you would like to place order:

Code No. of Diamond Wire

Diameter of the Wire (11.5mm or 11mm)

Wire Type (Rubber or Rubber + Spring type)

Granite Type (Hard, Medium, Soft, or Abrasive)

Order Quantity (How many Meters)

Wire Saw Machine Power (How many KW or HP of the motor)

Expected cutting speed and life(M2)

Expected shipping date
