Diamond wire saw for marble block squaring and slab cutting

Diamond wire saw for marble block squaring and slab cutting

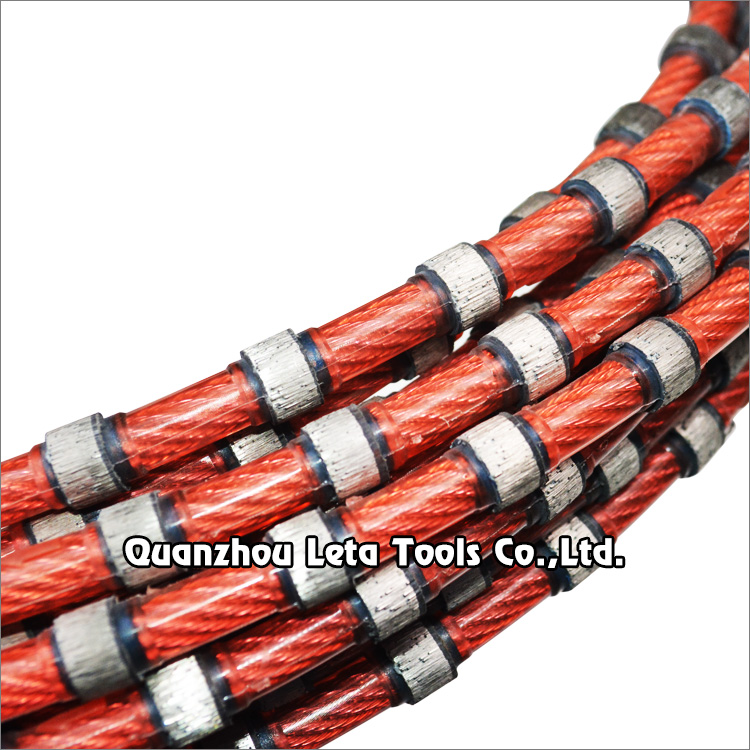

This plastic coating type diamond wire saw is usually for cutting stone block to pieces, shaping and profiling, which can be used to dissect and get the standard block.

They have following specialties:

The wire allows significantly greater sawing heights than large discs. It is possible to cut large block by diamond wire;

Thinner cutting width, and more precise;

By virtue of its reliability, adjust the cutting techniques according to different stone material;

Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques;

Less pollution.

Code No.	Diameter	Fixing Type	Beads No. pcs/M
DWSMS11.0	Ф11.0mm	Plastic	37pcs
DWSMS10.5	Ф10.5mm	Plastic	37pcs
DWSMS10.0	Ф10.0mm	Plastic	37pcs
DWSMS9.0	Ф9.0mm	Plastic	37pcs

The about specifications & photos is for reference, other specification may be available as per customer's demand.

Please inform the following if you would like to place order:

Code No. of diamond wire

Diameter of the wire (11mm, 10.5mm, 10.0mm, or 9mm)

Wire type (plastic, rubber, or plus spring?)

Granite type (Hard, Medium, Soft, or Abrasive)

Order Quantity (How many meters)

Wire saw machine power (How many KW or HP of the motor)

Expected cutting speed and life(M2)

Expected shipping date
