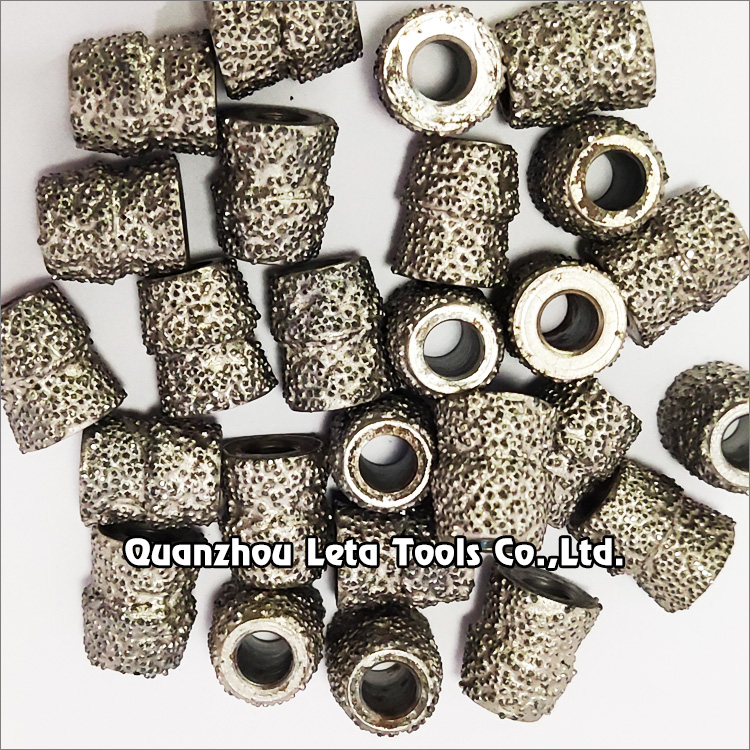

Vacuum brazed diamond beads of wire saw for marble travertine and
soft stone cutting
Diamond beads are the main part of diamond wire, vacuum brazed
diamond beads bring extra sharpness, it is specially designed for
fast cutting of marble travertine and other soft stones, to fit the
project whose cutting speed is required.
This type diamond beads is usually fixed on the steel wire by
springs to cut marble limestone or soft stone in quarry.
High
bonding strength, high cutting efficiency, and long lifespan, the
cutting speed is around 30-40% faster more than the sintered beads.
|
Code No. |
Diameter
|
Working Length
|
Material Cutting
|
| DB-VB1-11.5 |
Ф11.5mm
|
6.4 |
marble
travertine
soft stone
... |
|
DB-VB1-11.0 |
Ф11.0mm |
6.0/6.4 |
|
DB-VB1-10.5 |
Ф10.5mm |
6.4 |
|
DB-VB1-9.0 |
Ф9.0mm |
6.0 |
| DB-VB1-8.5 |
Ф8.5mm
|
6.0 |
| DB-VB1-7.3 |
Ф7.3mm |
7.0 |
Please
inform the following if you would like to place order:
Code No. of diamond beads
Diameter of diamond beads
Inner hole size of diamond
beads
The hole is with or without
Screw
Material Cutting (For granite,
marble, concrete, or other material? Hard, medium,
soft, or abrasive?)
Order Quantity (How many pcs)
